Line laser level ADA 3D Liner 2V (А00131) (Code: А00131)
Laser beam | 2V 1H1D |
Light sources | 635nm/down point 650nm |
Laser class | 2 |
Accuracy | ±2mm / 10 m |
Self-leveling range | ±3° |
Working range | Up to 10 m,depends on illumination. With receiver – 50 m. |
Power supply | 3 x AA batteries |
Time of charging | Approx. 3 hours |
Time of continuous use | Approx. 8 hours with all lines ON |
Tripod mount | 5/8 |
Working temperature | -10°С ... +40°С |
Weight | 0,9 kg |
Included:
- Line laser level ADA 3D LINER,
- Aluminium case,
- Batteries,
- Laser glasses,
Line laser level ADA 3D Liner is designed for horizontal and vertical marking. With 3D Liner 2V you can make one or several perpendicular vertical lines and horizontal line to work indoor and outdoor.

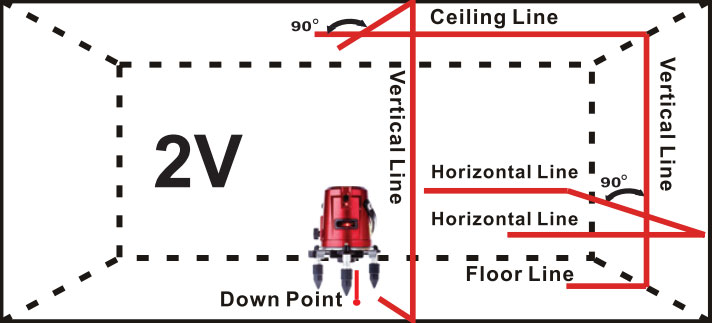

3D Liner 2V builds 2 vertical lines (2V), 1 horizontal (H), down point (D). The receiver can be used over 50 m of radius – for outdoor work.
ADA 3D Liner is equipped with compensator for quick self-leveling. Self-leveling range of compensator is ±3°. When the instrument inclines more than ±2 the laser lines automatically gleam. Fine adjustment mechanism makes it easier to set the instrument before operation/during operation. When you switch off the power, built-in locking system locks the compensator automatically to avoid vibration during transportation.
